產品名稱：
英管外螺紋60°/英管外螺紋O型圈 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

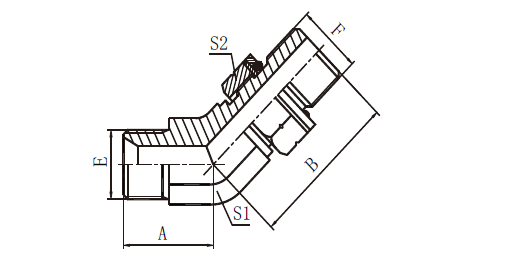

| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | A | B | S1 | S2 | ||
| A35-04/4 | G1/4"X19 | G1/4"X19 | 22 | 28 | 14 | 19 | |
| A35-06/4 | G3/8"X19 | G3/8"X19 | 21 | 30 | 16 | 22 | |
| A35-08/4 | G1/2"X14 | G1/2"X14 | 27 | 36 | 22 | 27 | |
| A35-12/4 | G3/4"X14 | G3/4"X14 | 32 | 42 | 27 | 32 | |
| A35-16/4 | G1"X11 | G1"X11 | 34 | 44 | 33 | 41 | |
| A35-20/4 | G1.1/4"X11 | G1.1/4"X11 | 38.5 | 47.5 | 41 | 50 | |
| A35-24/4 | G1.1/2"X11 | G1.1/2"X11 | 44 | 51.5 | 48 | 55 | |
